Description

Manual water carrying takes a long way and consumes a lot of manpower. This water pump offers a great solution. Made of high-quality aluminum and iron, it is strong and durable. The powerful engine can promote efficient work. Meanwhile, it produces low noise (about 96dB) with a built-in silencer and can save fuel. It will be your ideal choice.

Details

Heat Dissipation Holes: They can dissipate heat in time and prolong the service life of this product.

Large Fuel Tank: The large fuel tank (0.95gal) can last longer and avoid frequent adding.

Application

It is suitable for farmland, fruit field, vegetable garden, and car washing, and can be used for flood control and drainage, engineering construction, well water intake, long-distance water transmission in farmland, large-scale sprinkler irrigation in gardens, fire water, fish pond breeding, etc.

Specification

Color: Silver, Black

Material: Aluminum, Iron

Shape: Rectangular

Style: Modern

Surface Treatment: Plastic Spraying Process, Welding Process

Power: 4.8KW, 6.5HP

Type: 4-stroke Engine

Speed: 3600rpm

Displacement: 210cc

Maximum Flow: 36m³/h (9510GPH)

Fuel Consumption Rate: 360ml/kw.h

Power Type: Manual

Fuel: Gasoline and 4-stroke Engine Oil

Fuel Tank Capacity: 3.6L/0.95gal

Maximum Lifting Height: 28m/92ft

Maximum Suction: 7m/23ft

Noise: About 96dB

Weight: 20kg/44lbs

Inlet and Outlet Joint Diameter: 2inch/5cm

Installation

1. Place the gasket in the joint.

2. Rotate to install the joint and tighten it.

3. Install the water pipe clamp.

4. The installation is completed.

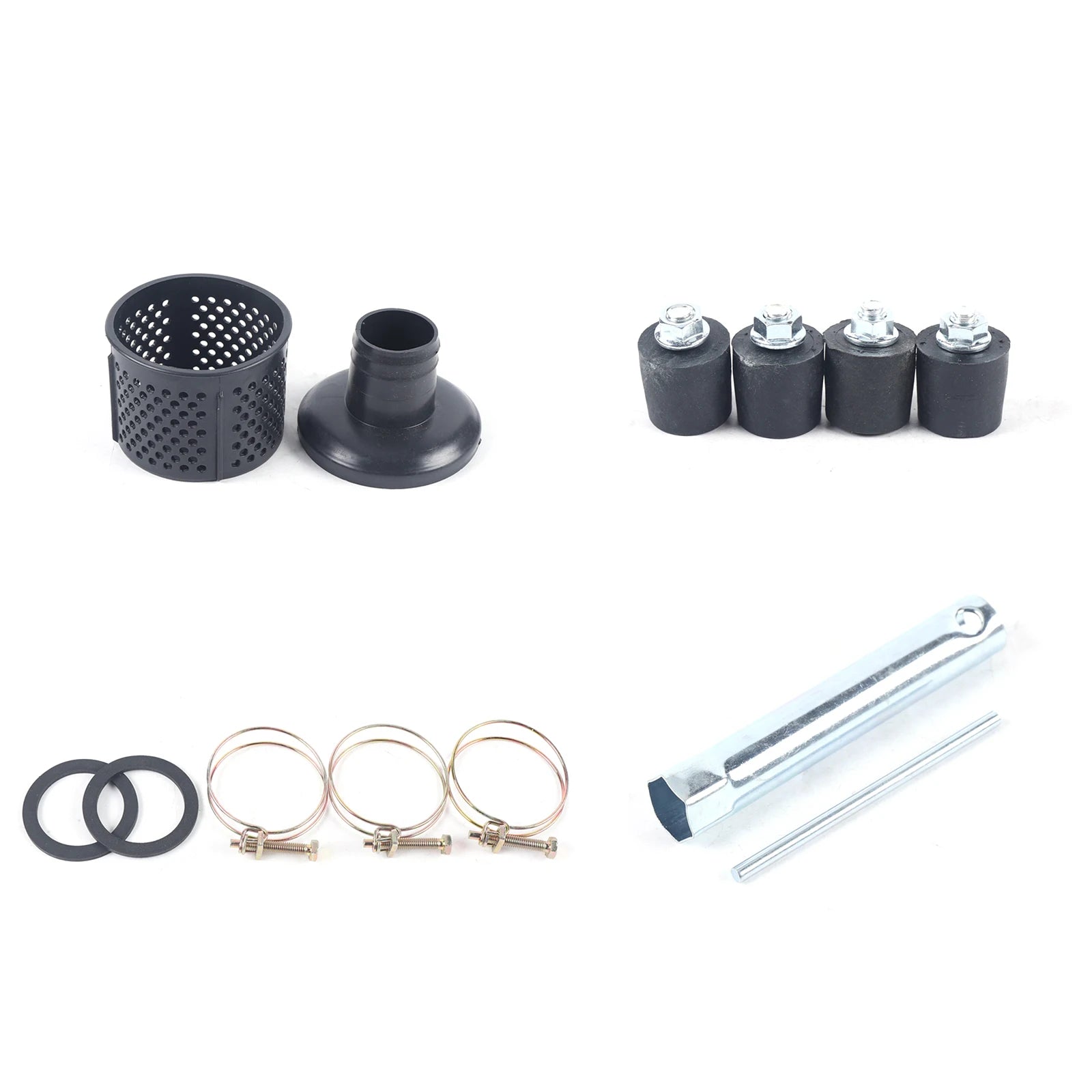

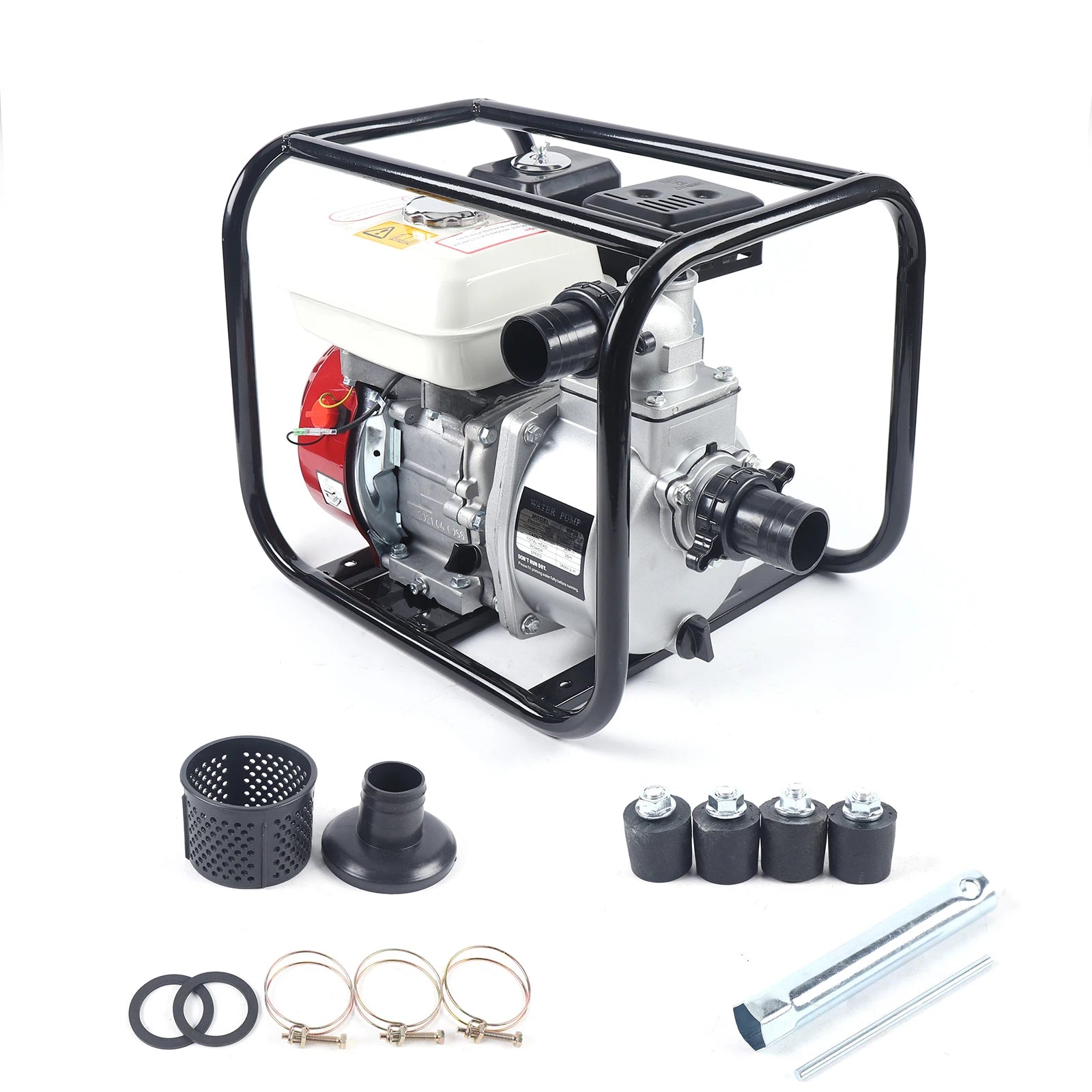

Package Included

1* Water Pump

2* Inlet and Outlet Joints

2* Fastening Nuts

2* Sealing Rubber Rings

3* Fastening Rings

1* Plastic Filter

1* Contact of Filter

4* Anti-skid Feet

1* Wrench

1* English Manual

Other Accessories for Assembly

Notes

1. Please fill the pump head with water before starting to avoid damaging the pump head. The machine needs to be filled with gasoline and four-stroke engine oil before use to prevent cylinder explosion due to insufficient lubrication and overheating.

2. Please do not use the machine indoors or in a damp environment. Please keep the product away from inflammable items.

3. Please turn off the machine and do not smoke when refueling. Please do not add excessive fuel to avoid potential danger caused by fuel overflow.

4. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
