SPECIFICATIONS

Abbreviation: SMPS

Brand Name: lebeisenf

Certification: CE,RoHS

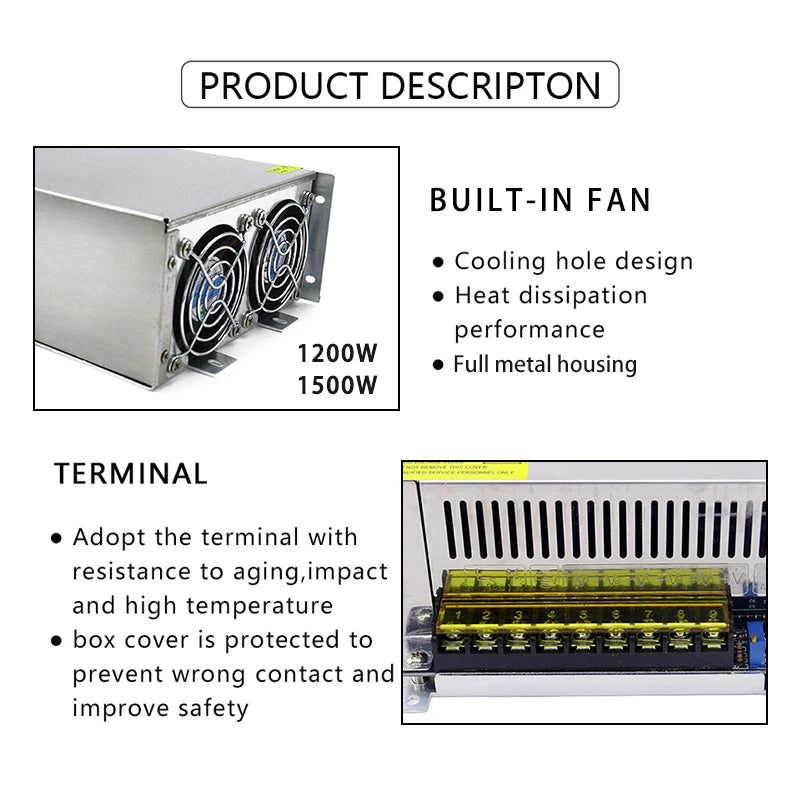

Cooling method: Fan Cooling

Hign-concerned Chemical: None

Input voltage: AC110/220V ±15% 720W ; AC170-250V

Installation method: screw installation

Model Number: S-48V

Modulation method: pulse width modulation (PWM) type

Note: do not overload

Origin: Mainland China

Output Current: 0-31.3A

Output Frequency: 50/60HZ

Output Power: 720-1500W

Output Ripple Noise: 120mVp-p

Output Type: SINGLE

Output current: 0-31.3A

Output power: 720W 800W 1000W 1200W 1500W

Output voltage: 48V DC

Output voltage accuracy: 98%

Power Type: AC/DC Converter

Product Name: Switch Mode Power Supply

Product certification: ce ROHS

Protection class: IP20

Protection function: SCP, OLP, OVP

Regulation rate: ±5 (%)

Reset method: self-recovery

Scope of application: LED, security, industrial control, motor

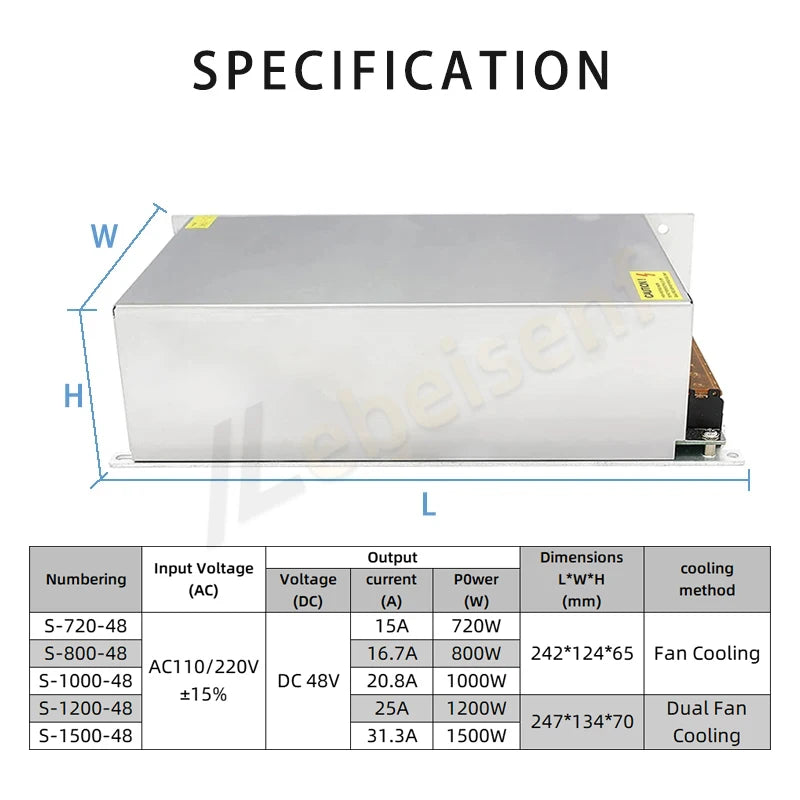

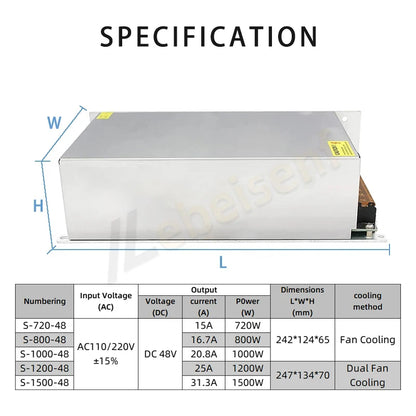

Size (mm): L242*W124*H65 (720W 800W 1000W)

Size (mm) 2: L247*W134*H70 (1200W 1500W)

Transistor connection: half bridge

Voltage regulation range: 10%

Warranty: 2 years

Weight: 1.7KG

Work efficiency: 89%

Working frequency: 50-60HZ

Working temperature: -40℃ to 65℃

is_customized: No

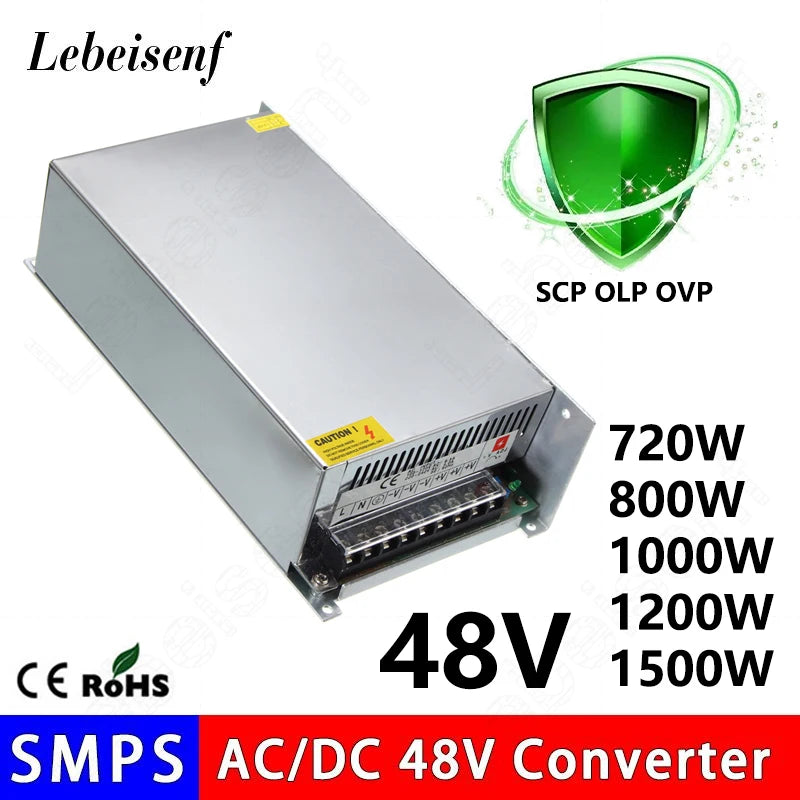

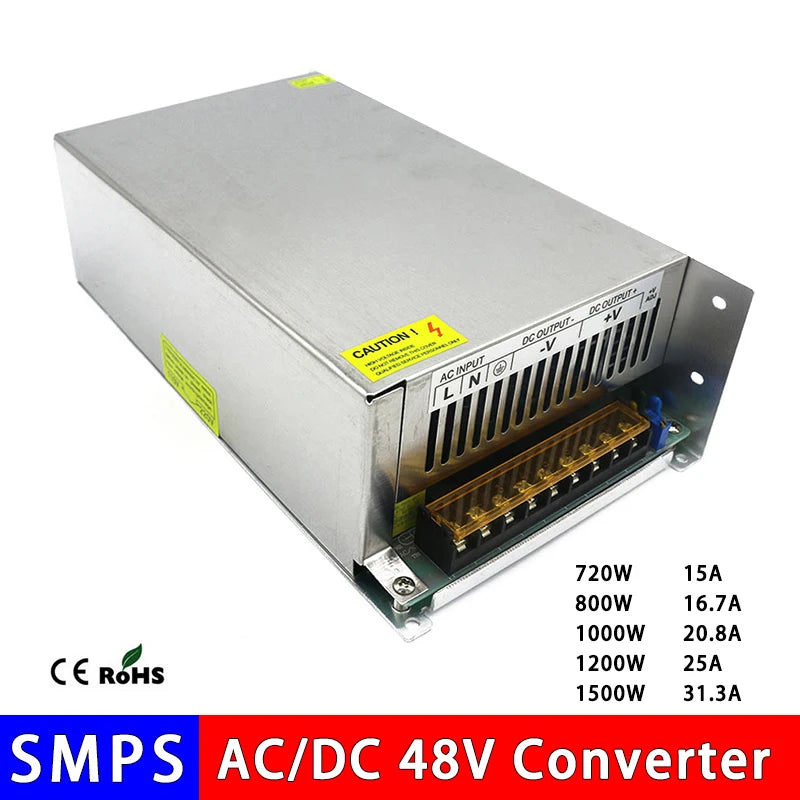

AC/DC Converter 110V 220V 170-250V AC to DC 48V 720-1500W Switching Power Supply LED Lighting Drive Transformer Adapter

 Features:
1. Input voltage range: 170-250VAC

2. Low standby power consumption and high efficiency
3. Low ripple noise
4. Output short circuit, over current, over voltage protection
5. Scope of application: LED, street light control, electricity, security, industrial control, communication, instrumentation, laboratory, smart home, electrical appliances and other fields

Detailed parameters:

Product Name：	Switch Mode Power Supply
Abbreviation：	SMPS
Power Type：	AC/DC Converter
Modulation method：	pulse width modulation (PWM) type
Transistor connection：	half bridge
Input voltage：	AC110V/220V ±15%
Output voltage：	48VDC
Output current：	0-31.3A
Output power：	800W 1000W 1200W 1500W

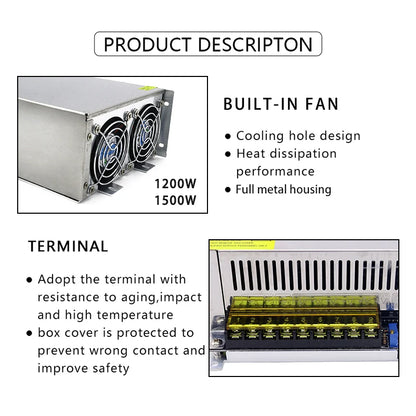

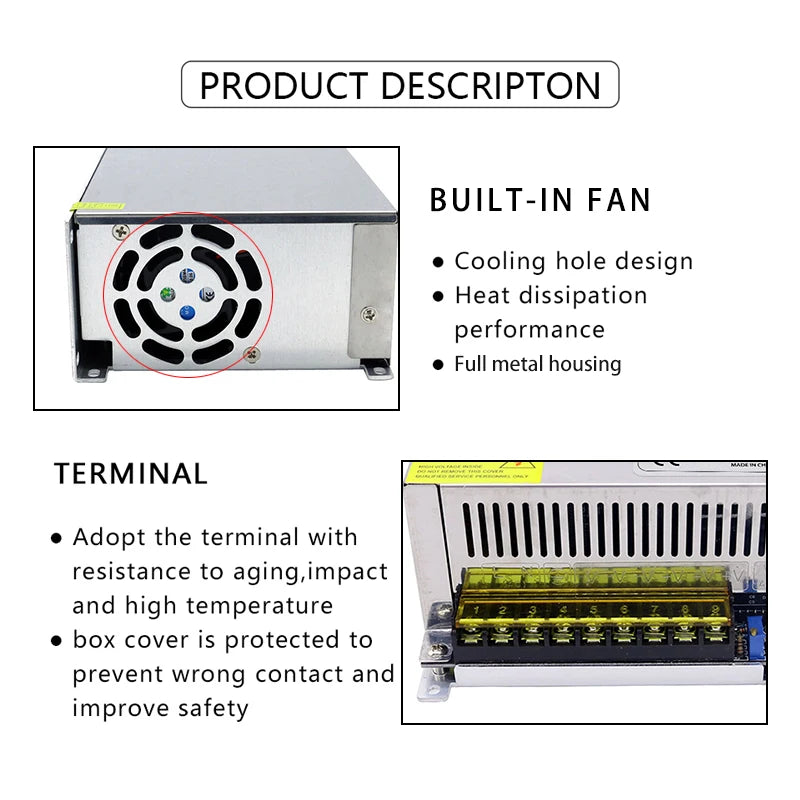

Cooling method：	fan cooling
Size：	L242*W124*H65mm
Weight：	1.7KG
Work efficiency：	89%
Working frequency：	50-60HZ
Output Ripple Noise：	120mVp-p
Output voltage accuracy：	98%
Voltage regulation range：	10%
Regulation rate：	±5 (%)
Product certification：	ce ROHS
Scope of application：	LED, security, industrial control, motor
Working temperature：	-40℃ to 65℃
Protection class：	IP20
Installation method：	screw installation
Note：	do not overload
Reset method：	self-recovery
Protection function：	SCP, OLP, OVP
